Attractive Wherever High Pressure is Needed

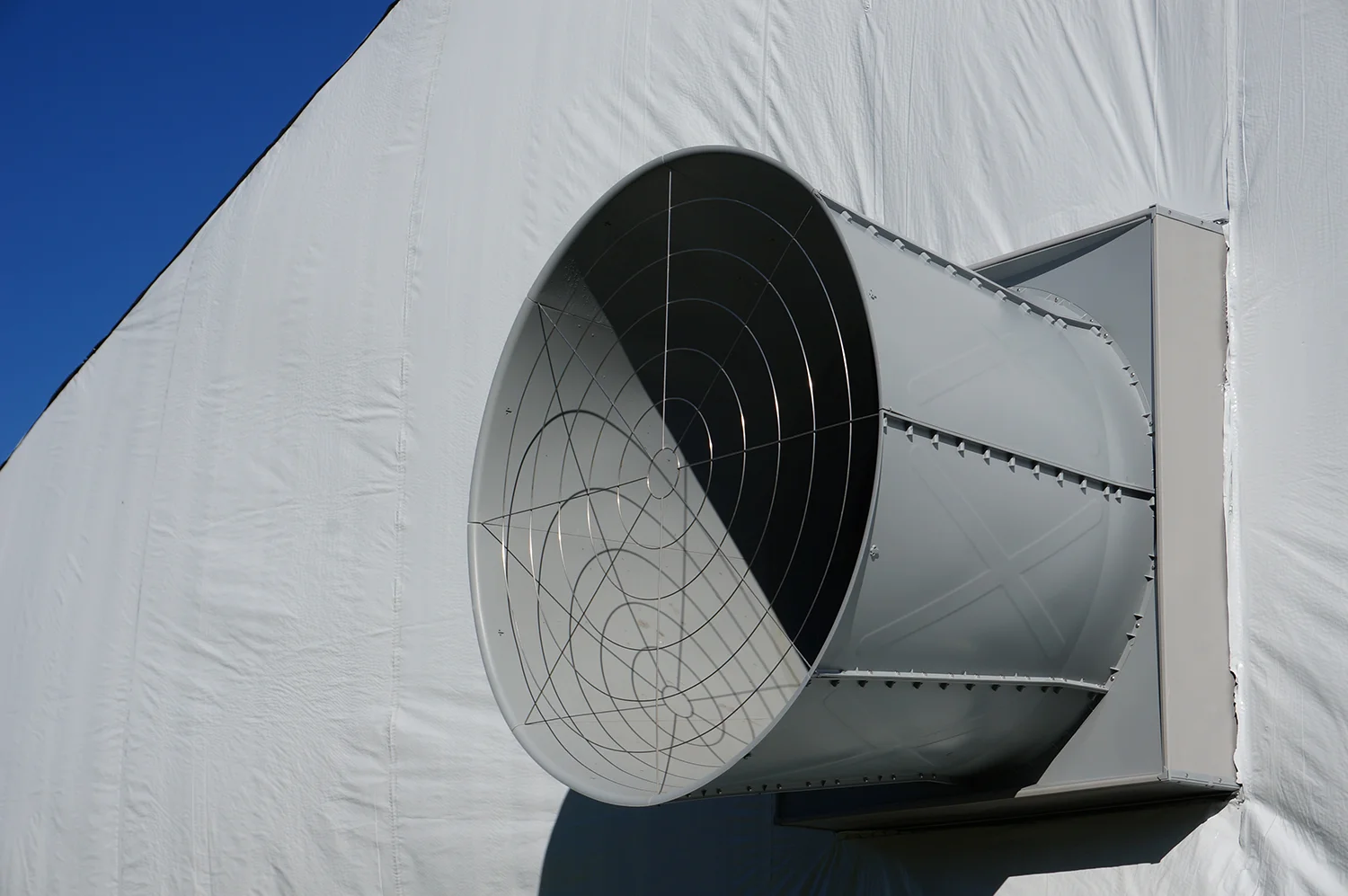

MagFan Plus is a more powerful version of MagFan.

The only difference between the two is the motor output. The efficiency of this unit is exactly as good as for MagFan, but due to the 2.2 kW motor the unit can work up to 750 rpm. Therefore it has a higher capacity and continues to produce air flow when static pressures exceed 90 Pascal (0.36 WC).

In large scale operations where static pressures often exceed 60 Pascal (0.24 WC) most other fans cannot produce air but MagFan Plus still produces an impressive 62.421 m3/h @ 60 Pa (36740 cfm @ 0.24” WC).

MagFan Plus uses a state-of-the-art variable frequency drive, allowing for simple single phase installation and a wide range of input voltages, ranging from 85 to 265VAC 50/60Hz, with an optional three phase drive ranging from 360 to 440VAC 50/60Hz.

For more information about MagFan Plus click here.

For the complete performance data sheet click here.

TECHNICAL SPECIFICATIONS

Housing and cone
PP-HD, gray (RAL 7040)
PVC, gray (RAL 7040)
Impeller blades
Celstran Technofiber
Brackets, guards
Stainless steel / AISI 304 / A2
Dimensions assembled
Weight: 90 kg/200 lbs
L x W x D (mm): See drawing
Impeller diameter: 1430 mm/56.5”
Drive
Water proof speed drive
cos (phi) / power factor at full load: 0.99
In-built drive and motor protection
Motor
Permanent Magnet Synchronous three phase
Output (continuous duty): 2.2kW @ 750 RPM
Insulation class F, 170°C magnets
In-built double klixon thermal protection
Power supply
Universal, 85-265VAC, 50/60Hz single phase
